AXCEL® Achieve XP Variable Range (VR) - Recurve

Experience improved balance and reduced vibration with the Achieve XP Variable Range Sight. By positioning the scope block closer to the center of the elevation bar, balance is enhanced while vibration is cut by 30–40%. The 1.5 model removes 1.2 oz. from the target end of the sight, while the 2.0 version removes 1 oz., offering noticeable weight reduction without sacrificing stability. Built with the same trusted technology as the Achieve XP, these models go a step further with superior vibration dampening and optimized weight distribution.

• Ultra High Modulus (UHM) Carbon Bar: Crafted with cutting-edge engineering, this upgraded bar is twice as strong as its predecessor, thanks to its enhanced construction with thicker, densely layered carbon fibers.
  • Available in 9" only for Recurve models
• Wedge Lock Bow Mount Bracket with Dual Bridge Technology: Engineered for superior performance, the Achieve XP VR Wedge Lock Bow Mount Bracket features our patent-pending Dual Bridge Technology, delivering industry-leading strength and rock-solid mounting in any environment.

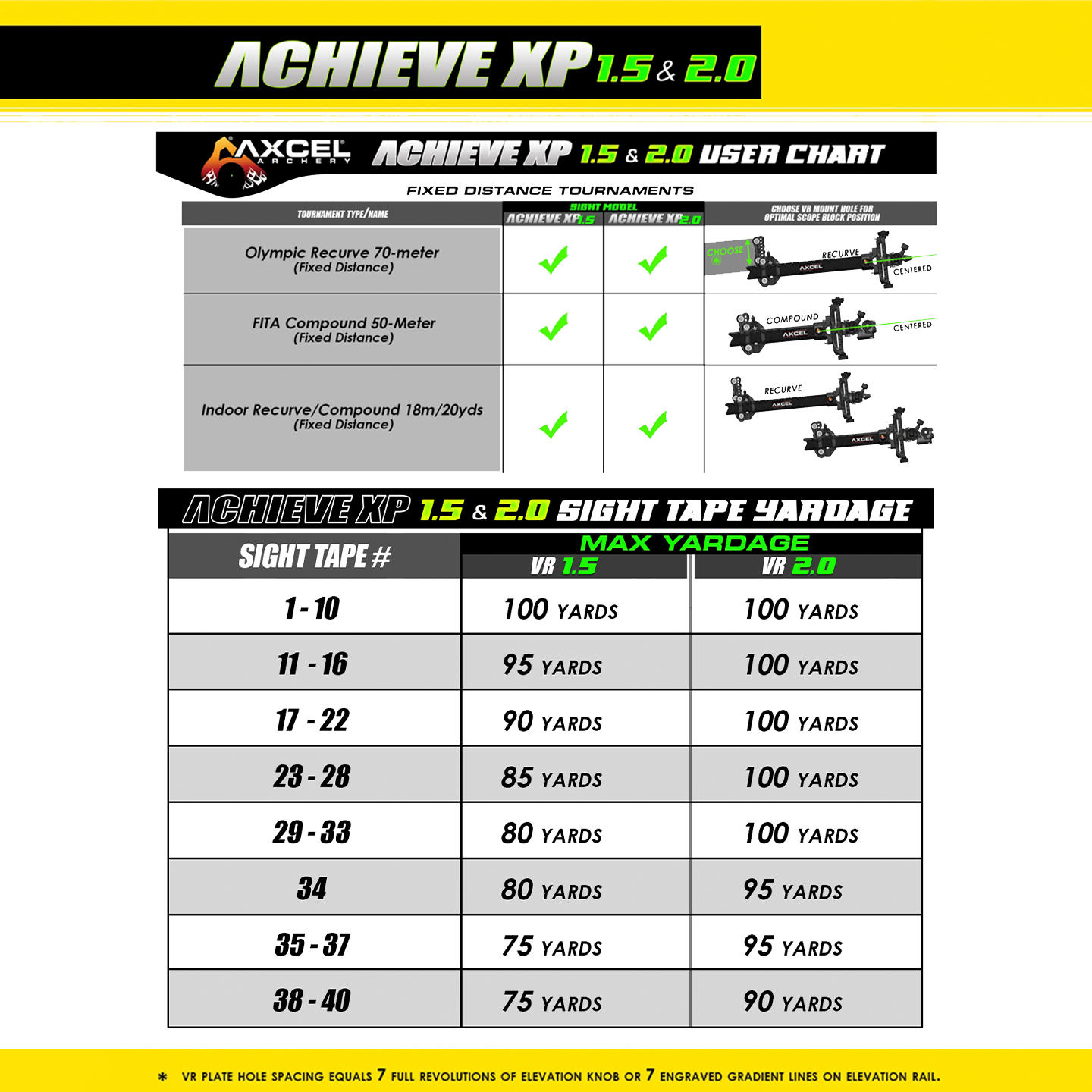

• Variable Range (VR) Plate: Maximize your sight’s elevation travel with the Variable Range Mounting bracket. Each hole is 7/32”, which is equivalent to 7 lines on the engraved sight scale.
• Balanced In-line Tension System: All tension is internally designed to apply pressure forces in the direction of the target for superior accuracy.

• ZERO Backlash Windage Dovetail Guide System: Our adjustment knobs offer precise, responsive control — turn in one direction and then back, and they react almost instantly courtesy of our windage dovetail guide system.

• Stronger 10-32 windage lead screw: Features a robust 10-32 windage lead screw, delivering precise and reliable adjustments for enhanced accuracy.
• Thinner, weight-reducing elevation rail: Optimized for reduced weight without sacrificing strength. We have worked to shave down our elevation rail even more to try and give you the competitive edge you deserve.
• Sleeve Lock Aperture Block: This #8-32 Sleeve Lock Block simplifies aperture installation by eliminating the need for hex nuts, instead securing with a lock down screw for reliable stability. The precision-machined detent ensures the block returns to the exact same position every time.
• Available Colors
  • Black/Black
  • Green/Black
  • Gold/Black
  • Blue/Black
  • Orange/Black
  • Red/Black
  • Silver/Black
  • Purple/Black

*Colors may vary from pictures

*Available in right or left-handed models

CLICK HERE to download the Achieve XP VR Tech Manual
